Standard Type Vertical Motorized Test Stand MX3-500N

  • Motorized Test Stand with a stable force application capacity of up to 500N
    - Enable highly reproducible tests with uniform test conditions in speed/force direction
    - Possible to control operation by force value (load keep, etc.)
    - Dedicated downloadable software included for setting/saving/loading test conditions



Features
High measurement reproducibility
- Enables Stable force capacity of up to 500N
- Stable uniformity in force directions and test speed
- High rigidity with a low deflection design.		 Cater to a wide range of measurement types
- Repeated durability test by setting the number of test cycles
- Durability test by maintaining the specific force value (*2)
- The table designed to cater to a various attachment.
Simple Operation
- Display in English or Japanese languages
- Simple test condition settings with dial and buttons operation
- Clear display of test settings and status for immediate
confirmation.
- Software (*1) for test condition settings from PC included		 Supporting Functions for Higher Operability and Safety
- Easy Stroke Limit setting with adjustable Knobs
- Buttons for moving the head up/down manually at a set or
max. speed
- Trigger signal sent at the start/end of the test (*2)
- Lock function to lock settings with a password

*1 Includes download rights for the CS Test Preset Builder software. Refer to page 6 for details.
*2 Connection with compatible force gauge via a dedicated cable is required. Refer to page 5 for details.

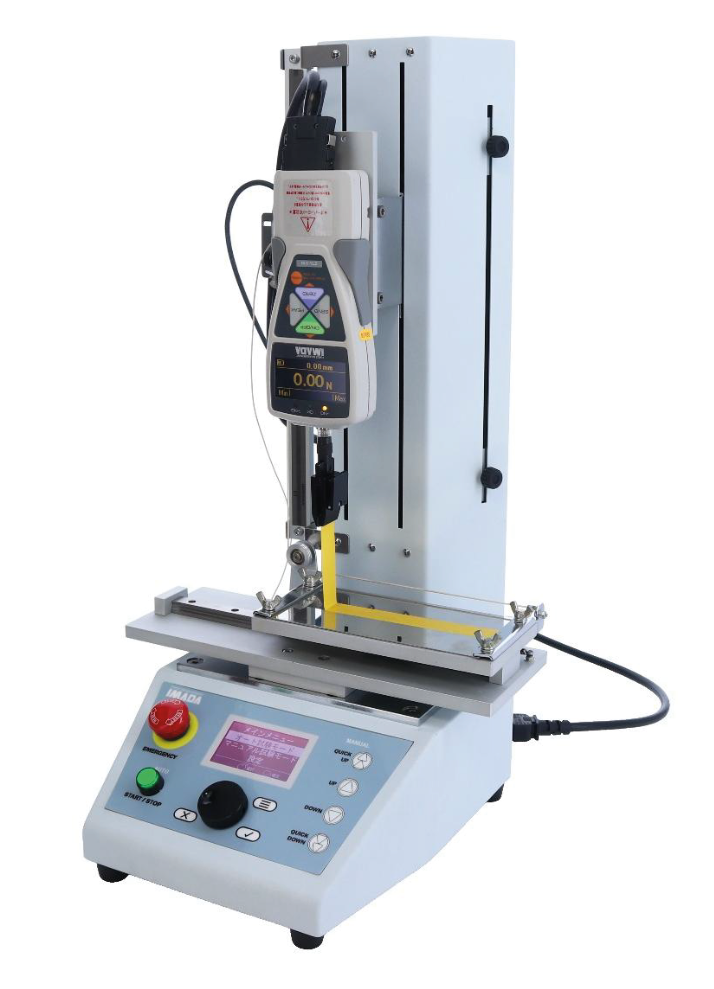

[Product Configuration Example]

[Optional Cable]
Dedicated Cable for connecting the motorized test stand and the force
gauge. Connecting enables various Interlinking functions.		 [Stroke limit Knobs]
For the stroke limit setting. Tighten to fix the position.
[Force Gauge]
Force-measuring instruments for compression/tension force measurements. Mounted to the test stand head with included bolts.		 [Head]
Force Gauge mounting unit. Moves up and down.
[Linear Scale Unit]
Head Displacement measurement sensor. Available with the -FA option		 [Table]
For mounting samples, attachments and accessories.
[Optional Attachments]
Wide variety of optional force-measuring jigs and attachments are available.		 [Control Panel]
For setting and operations: Head movement control, emergency stops, etc.

*Force Gauges, Optional Attachments, and Optional Cables are sold separately. Linear-Scale Unit is pre-installed in -FA option.

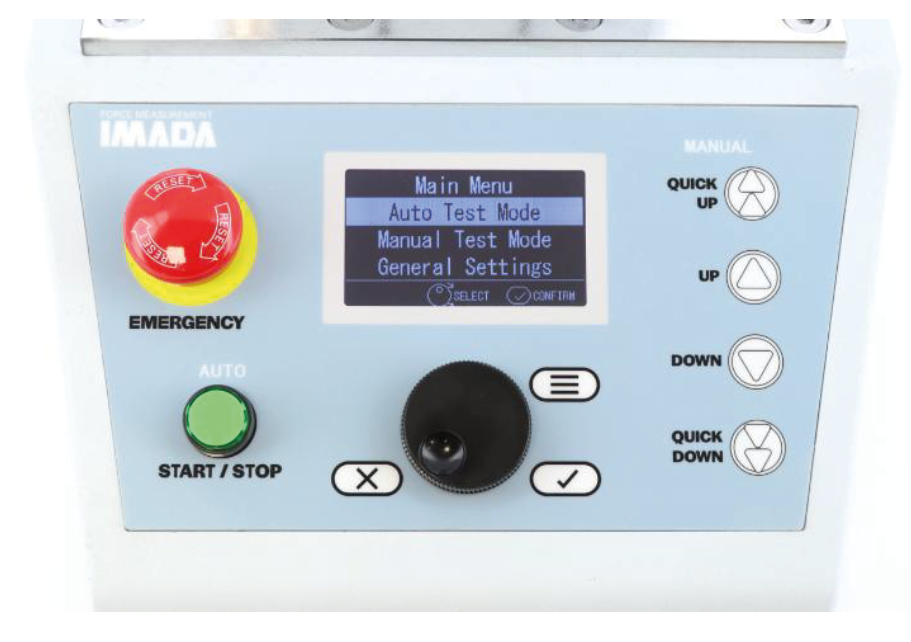

[Control Panel]

[Emergency Stop Button]
Press to stop the entire operation immediately		 [LCD]
Displays the operating and setting status in English and Japanese.
[START/STOP Button]
For Start/Stop, the Automatic Testing		 [UP/DOWN Buttons]
Press for up/down head movement at a set or maximum speed.

[OK/CANCEL/MENU Button]
Press to Confirm/Cancel, etc.

[Dial]
Turn to Select Changes and Settings.





[Basic Operations]

Test Modes: Automatic and Manual

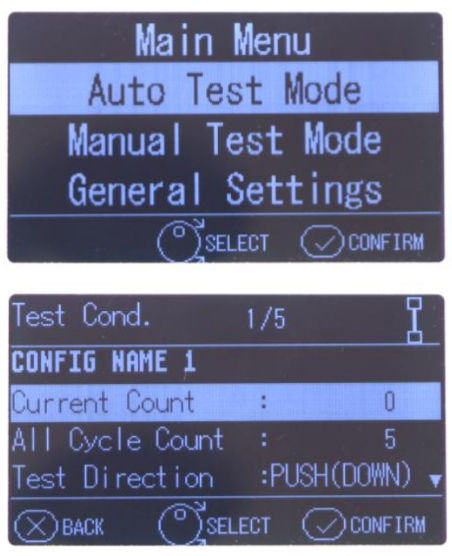

Test Mode Setting from Main Menu and
Auto Test Mode Setting Display

[Auto Test Mode]
Auto Test Mode settings enable automatic movement of the head within the set stroke limits, utilizing the force value operation controls (with
specified force values: stop, reverse, hold, etc.) and repeat settings, which can be configured with the required number of repeats and stops. *

■ Speed Settings for Auto Test Mode
The speed settings are available within the range of 10 to 300 mm/min for the measurement Forward, Measuring, and Return. Refer to the [Product Specifications] for details on setting resolution and other specifications.

[Manual Test Mode]
Manual Test Mode for up and down moves and controlling the force gauge (Test-Stand Head) by pressing the Control Panel buttons. Separate up and
down buttons for adjusting head movement and maximum speed settings. JOG MOVE for minor up/down adjusting with the dial turning.

* For operation control by force value, connect a compatible force gauge with a dedicated cable.Refer to [Force gauge interlinking function] on page 5 for more details.



[MX3-500N Optional Models]

Long Stroke (-L/-2L)  Speed Range changes (-V45/90/450/600/900)
The long stroke options for extended test stand column and the stroke distances. Designed for testing longer material samples or long, highly stretchable samples, etc. Enables the speed setting range changes from 1.5 to 900mm/min.
- The range depends on the options applied.
- The capacity reduced in specific speed ranges
Linear Scale Unit (-FA)  External Signal Input /Output (-CN)

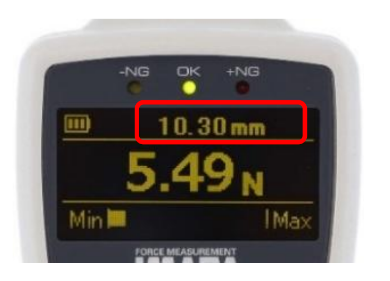

This option allows a linear scale unit to be installed on the test stand column for measuring head displacement.

*A compatible force gauge with displacement I/O, such as the ZTA series, and an optional cable are required.

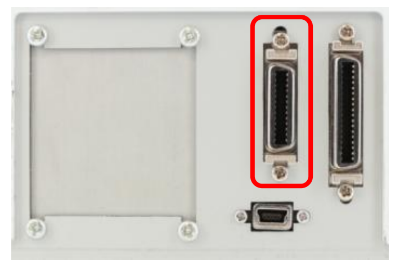

For the external input/output (I/O) connector. Enables Start/Stop, Safety Input. Essential for connecting with other facilities and equipment. E.g., interlock cover, etc

- Refer to the [Specifications] for details of options.
- Customer-installable linear scale unit is also available. Refer to the [Accessories] for details

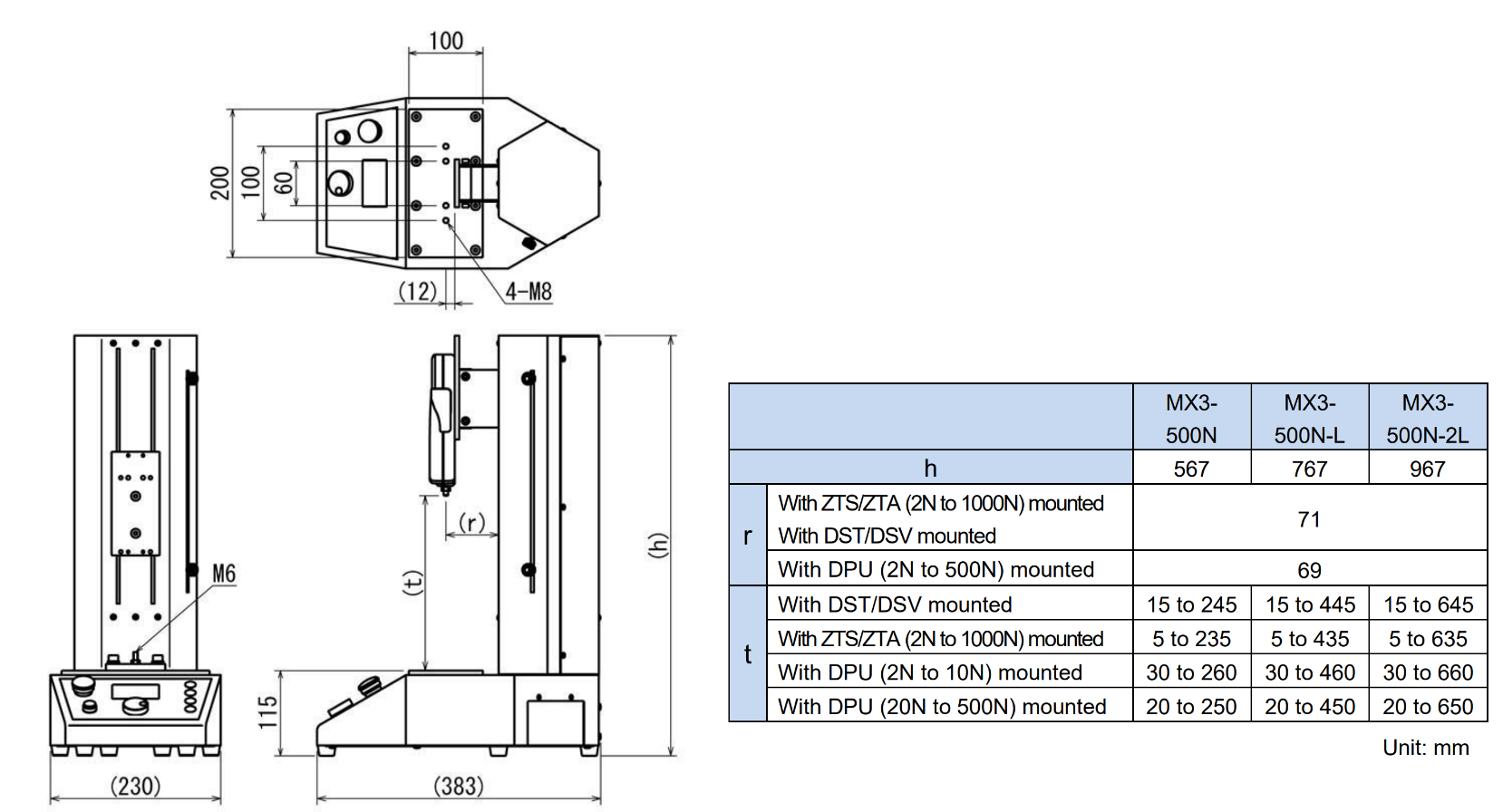

[Dimensions]
